Product Features:
Special pipe fittings reduce pulsation and improve accuracy.
Dedicated to high-precision distribution and small flow filling.
Small size and easy to drive.

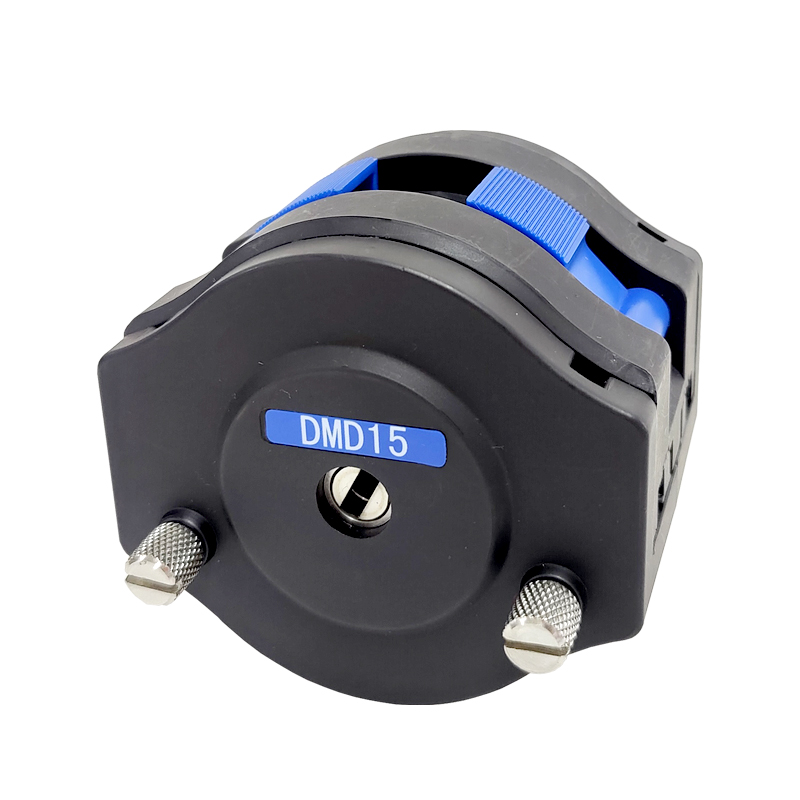

Features of DMD15 pump head:

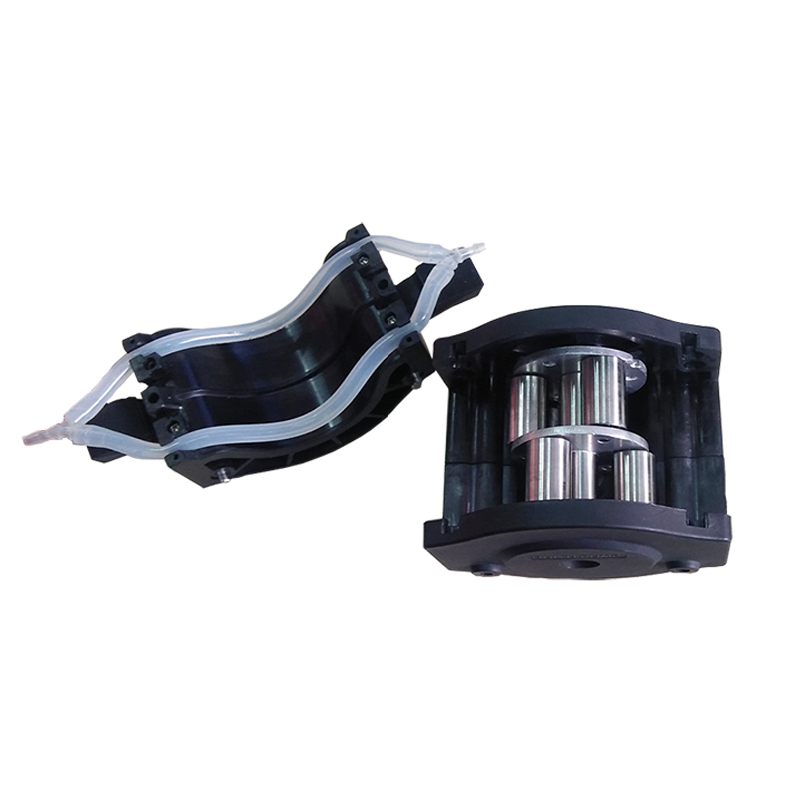

Special tube components can effectively reduce pulsation and improve accuracy. Maximum adaptation 25#.
| Product number | Product number | Roller material | Number of rollers | Shell material | range of rotation(rpm) | Use hose specifications | Maximum reference flow(ml/min) | Reference filling liquid volume(ml/min) | Reference filling time(s) | Maximum repeatability error | Distribution head inner diameter(mm) | weight(kg) |
| DMD15-13-B | 05.01.04B | Stainless steel | 3 | PESU | ≤600 | 2×13# | 80 | ＞0.8 | ＞0.6 | ±2% | ≤0.5 | 0.43 |
| ＞1.6 | ＞1.2 | ±1% | ≤0.5 | |||||||||
| DMD15-13-D | 05.01.04D | PPS | 4×13# | 160 | ＞1.6 | ＞0.6 | ±2% | ≤1.0 | ||||
| ＞3.2 | ＞1.2 | ±1% | ≤1.0 | |||||||||
| 2×14# | 300 | ＞3 | ＞0.6 | ±2% | ≤1.0 | |||||||
| ＞6 | ＞1.2 | ±1% | ≤1.0 | |||||||||
| 2×19# | 620 | ＞6.2 | ＞0.6 | ±2% | ≤1.5 | |||||||
| ＞12.4 | ＞1.2 | ±1% | ≤1.5 | |||||||||
| 2×16# | 960 | ＞9.6 | ＞0.6 | ±2% | ≤2.0 | |||||||
| ＞19.2 | ＞1.2 | ±1% | ≤2.0 | |||||||||
| 2×25# | 2070 | ＞20.7 | ＞0.6 | ±2% | ≤3.0 | |||||||
| ＞41.4 | ＞1.2 | ±1% | ≤3.0 |
